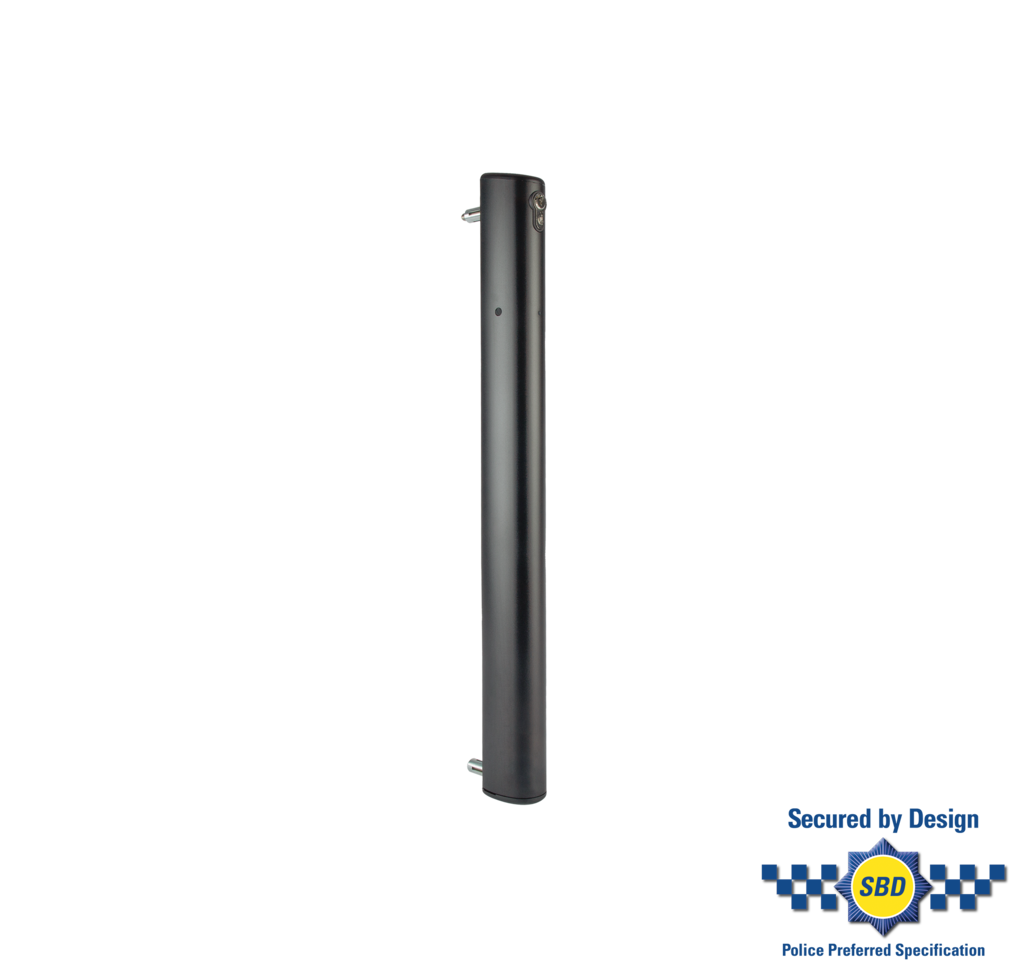

Electrical drop bolt - ELECTRADROP-E

Item No. P00010986 - ELECTRADROP-E-9005

9005
Motorized electrical drop bolt with Fail Close functionality in Black

Specifications

Specifications	Vandal proof, powder coated aluminum housing To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation Automatic detection and memorisation of the continuous or pulse signal Mechanical release possible (by key) in case of emergency The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries. Throw: 4-1/2" Drop bolt diameter: 25/32" Holding force: >2200 lbs For gate profiles: 1-1/2" or more Power consumption: Normal: 25 W / Peak: 72W / Standby: 0,2 W 16-1/2 ft cable included Included: 3012-37-STD-VSZ cylinder To connect to a Locinox PowerStone 60W IP66
Available in following RAL-colors
Features
