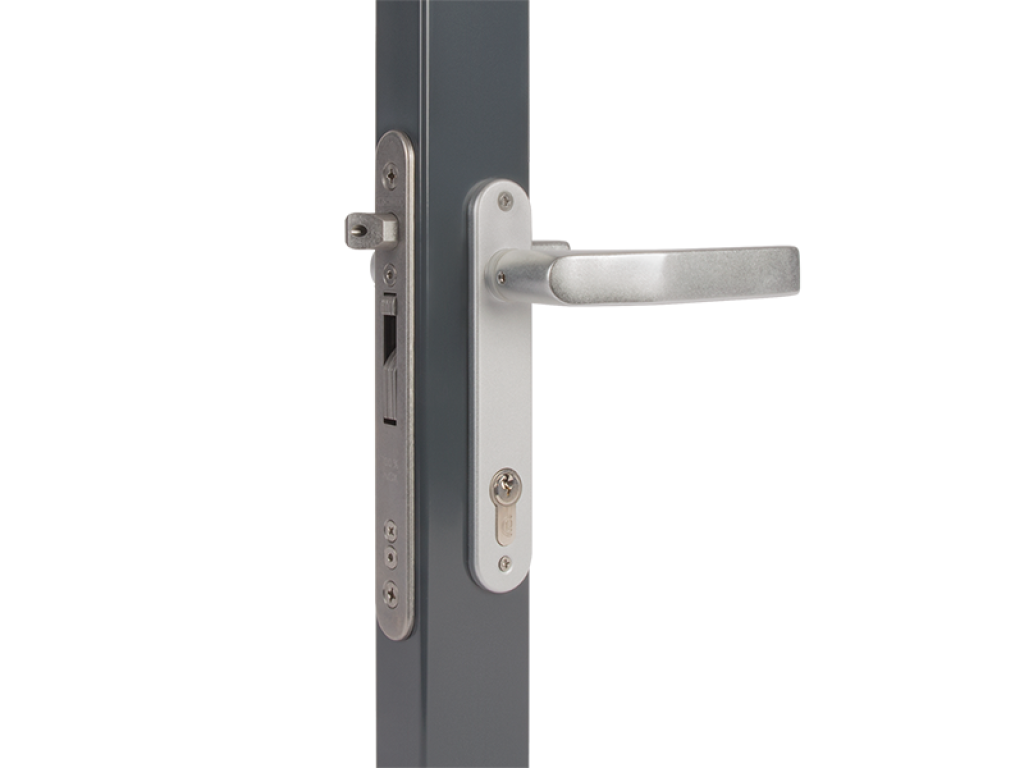

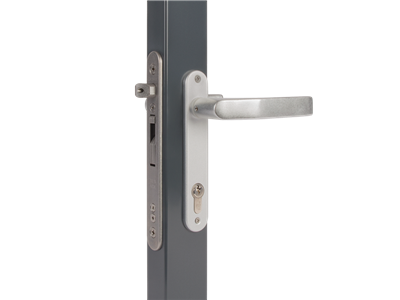

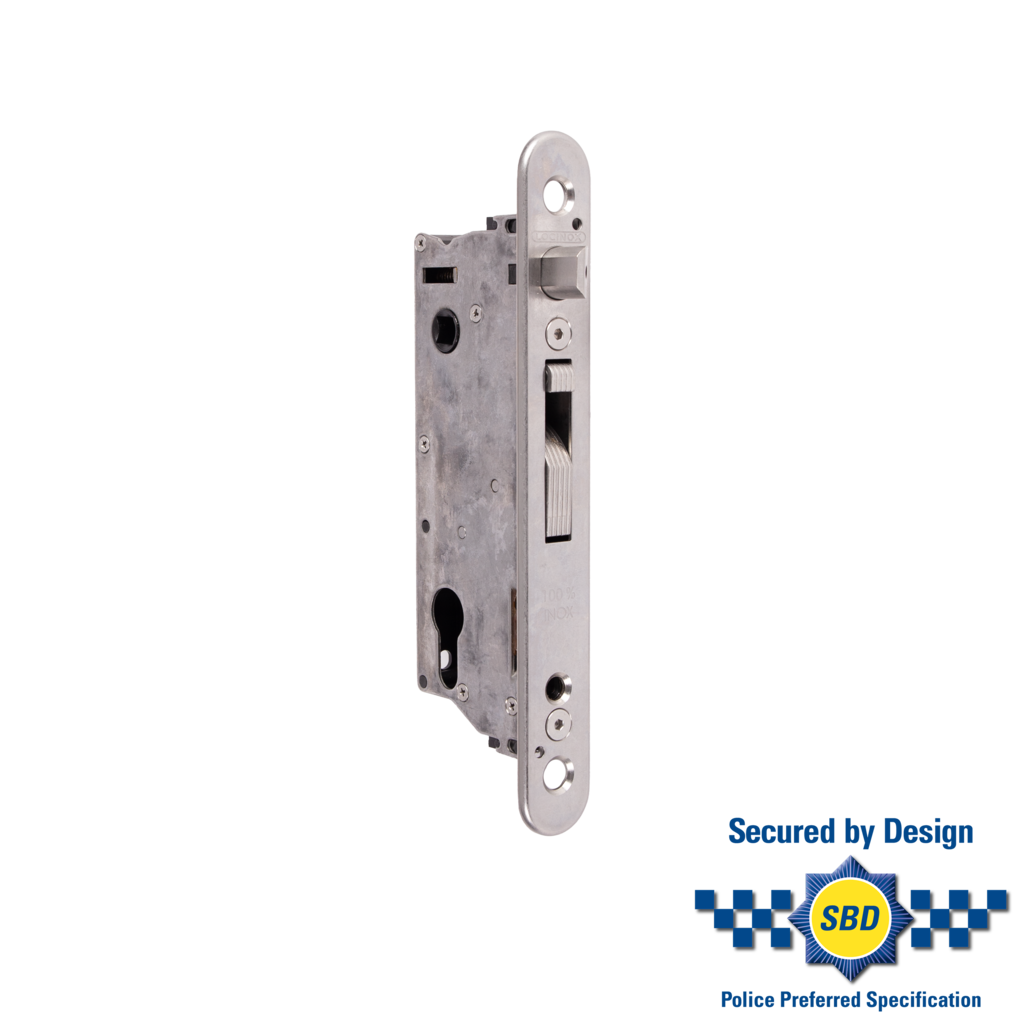

Insert lock with 1-9/16" backset for profiles of 2-3/8" or more

Insert lock with 1-9/16" backset for profiles of 2-3/8" or more - SIXTYLOCK

Item No. P00008053 - SIXTYLOCK

Prime insert lock with 100% stainless steel mechanism. The stainless steel, adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates. Thanks to the patented "Click-It" system the lock is mounted in seconds.

Specifications
Installation movies
Downloads

Specifications

Stainless steel lock mechanism with cover plate against dirt penetration
Stainless steel mechanism, hook, front plate and latch bolt
Backset 1-9/16", for mounting in profiles of 2-3/8" of depth or more
Continuous adjustment of the daybolt up to 3/8" without dismounting the lock
Key-operated self-latching bolt
Easy left or right changing of the self-latching daybolt
Throw of the hook: 13/16"
The center distance between the cylinder and the handle: 3-5/8"
Available with 2-1/8", 2-3/8", and 3-1/8" cylinder
Handles to be ordered separately
Optional: cover shield for handle & cylinder holes in aluminum, polyamide or stainless steel
UNIWING-compatible
