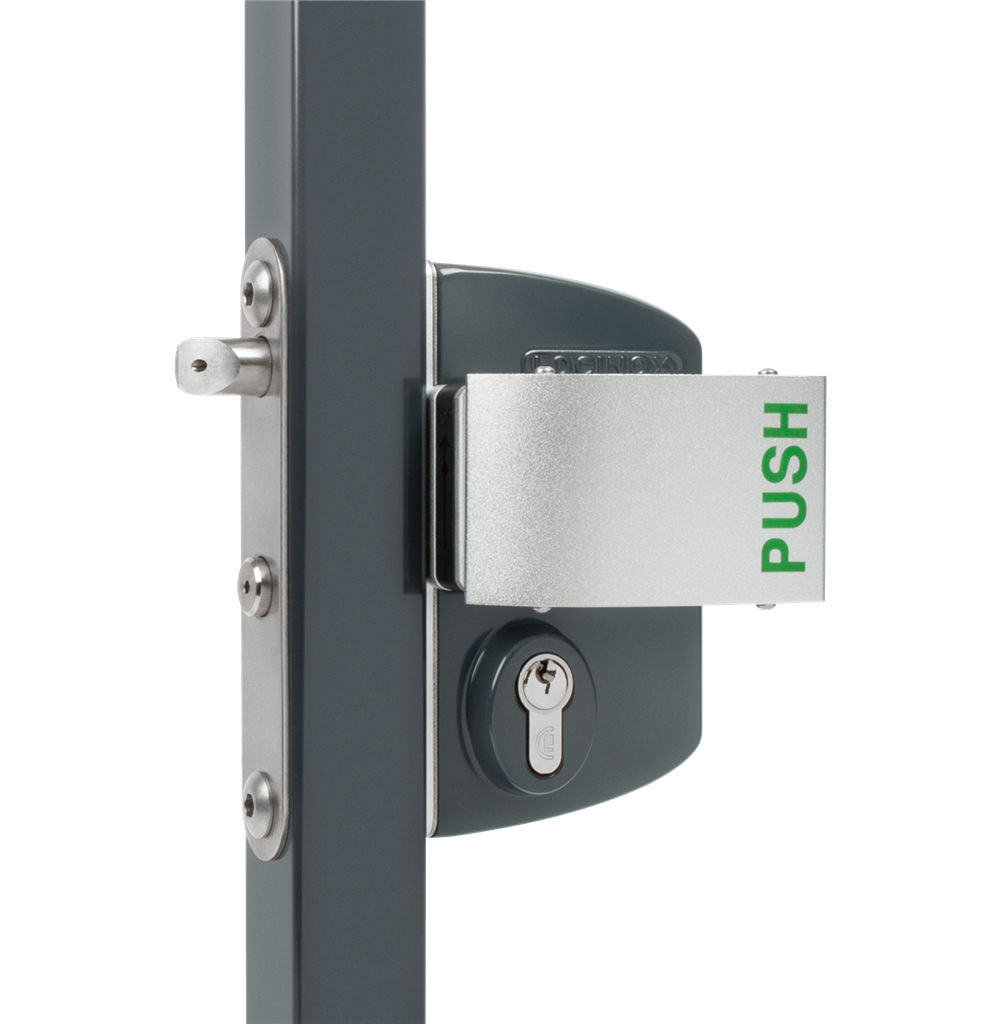

Surface mounted anti-panic gate lock
Surface mounted anti-panic gate lock
Surface mounted anti-panic gate lock
Surface mounted anti-panic gate lock
Surface mounted anti-panic gate lock
Surface mounted anti-panic gate lock
Surface mounted anti-panic gate lock
Surface mounted anti-panic gate lock

Surface mounted anti-panic gate lock

Item No. D00000008 - LPKQU2

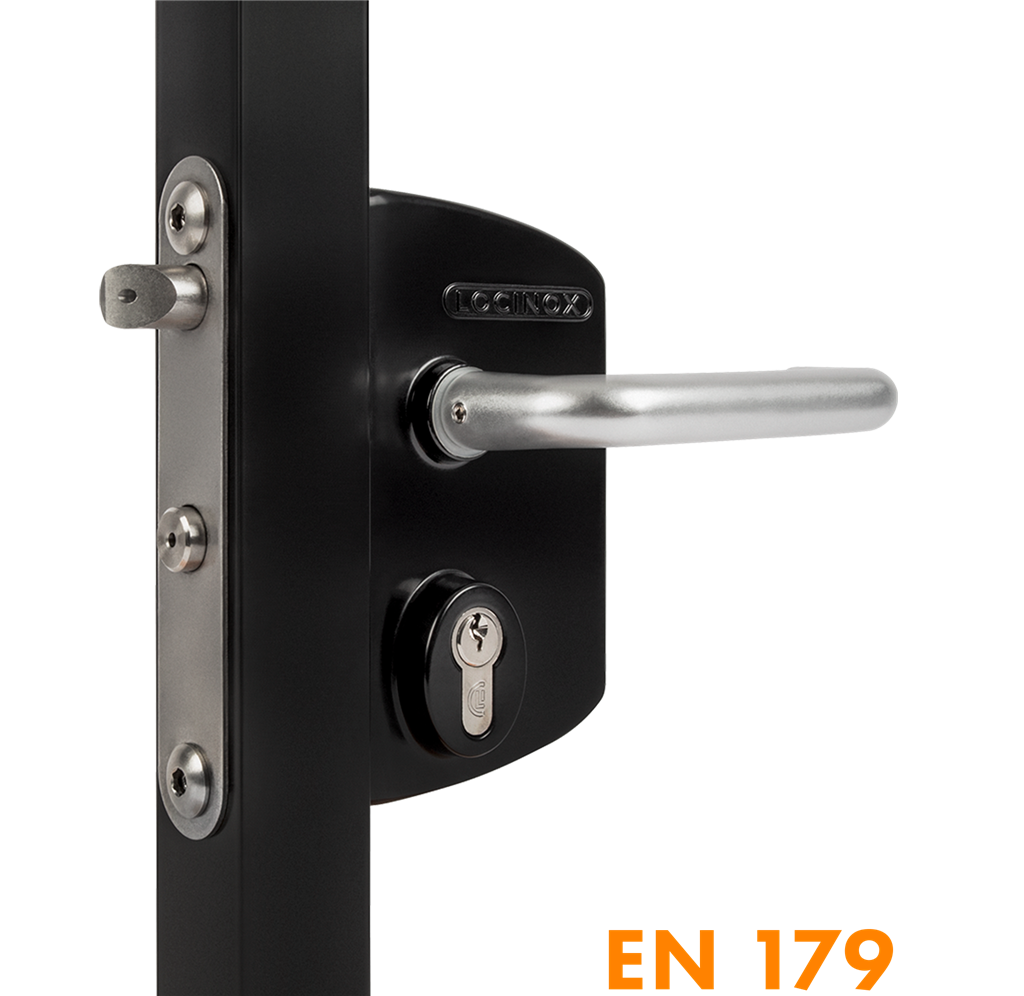

Stainless steel superior anti-panic lock with aluminum housing. EN179 certified configuration possible with LPKQ U2 for 1-9/16" & 2-3/8" gate frames with SAKL keep, 3006A-2 handle and 3012-54-STD- cylinder. Escape or exit from inside is possible at all times by operating the handle. Mechanical access from the outside is always possible by operating the cylinder. The 3/4" continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 15/16" throw guarantees a secure locking. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.
This product cannot be ordered at the moment.
Show all… Collapse
Show all… Collapse
Show all… Collapse
Show all… Collapse
Show all… Collapse
Show all… Collapse
Show all… Collapse
Show all… Collapse
Specifications
Specifications
  • EN179 certified configuration available
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • Key-operated self-latching bolt
  • 4-hole mounting with two hex head socket screws
  • Center distance bolts: 2-3/8"
  • Continuous adjustment of the daybolt up to 3/4" without removing the lock box
  • Stainless steel mechanism
  • Tested up to 500 000 movements
  • Panic function E / Switch function
