Internal drop bolt - SUBY

Item No. P00007773 - SUBY

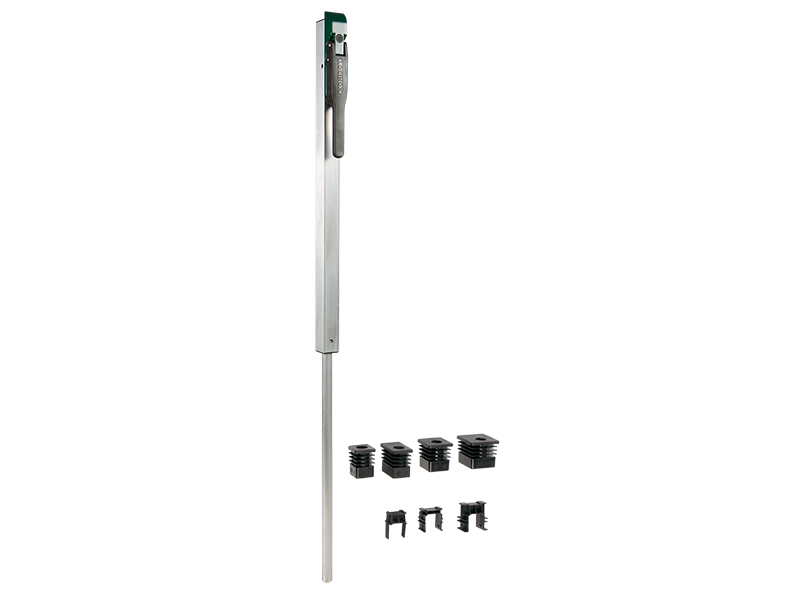

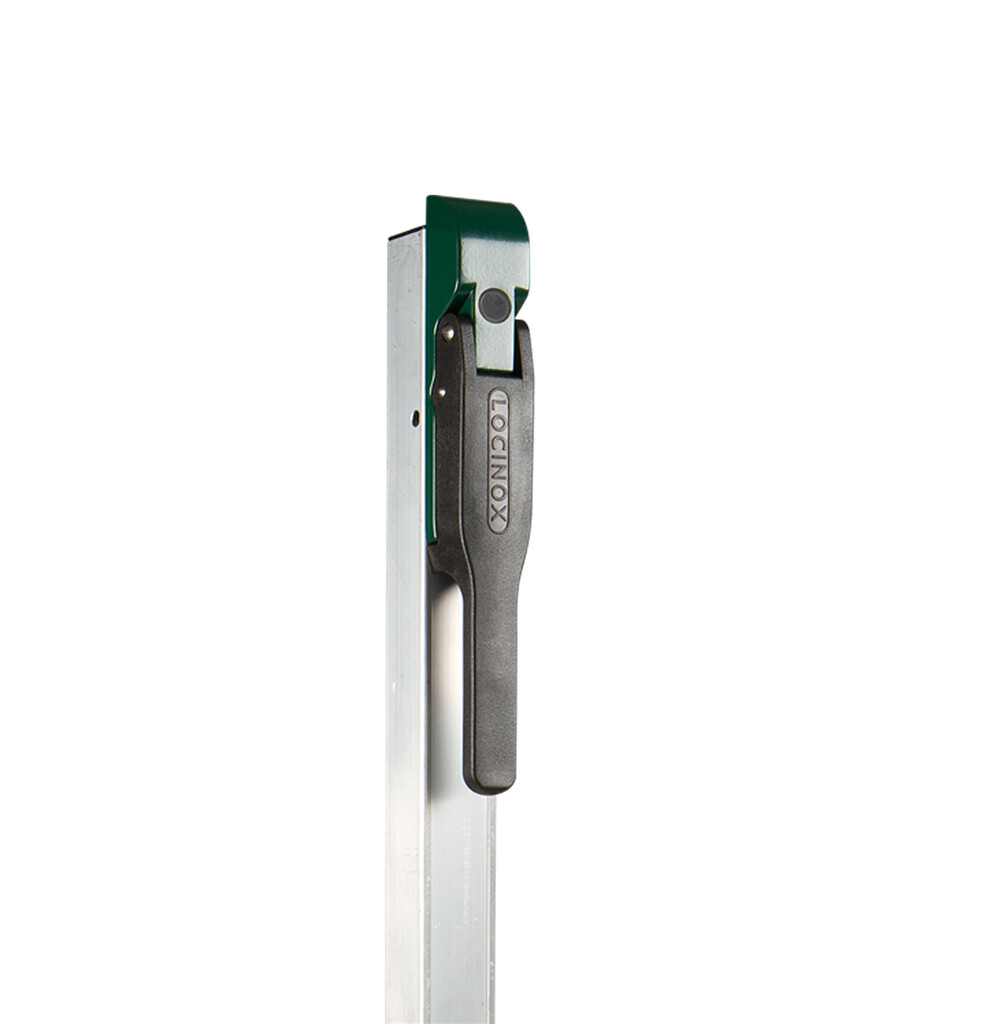

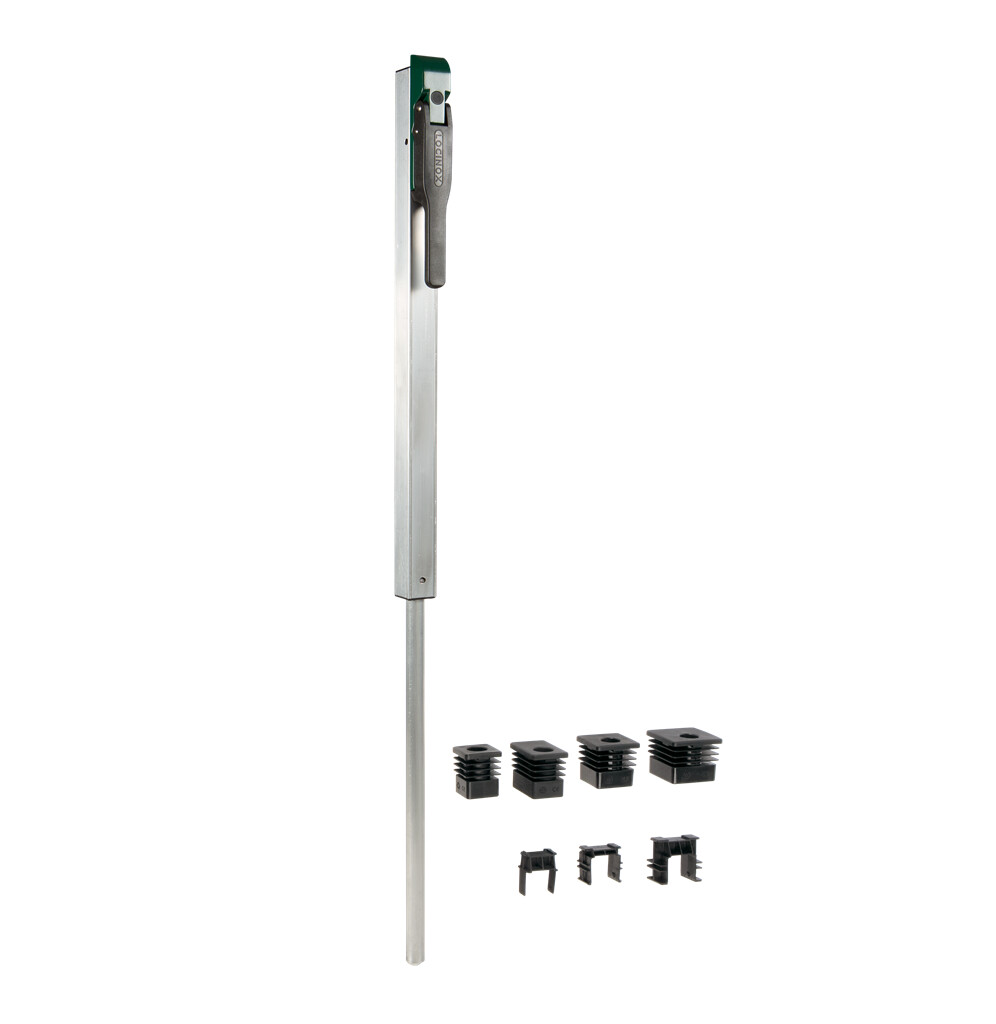

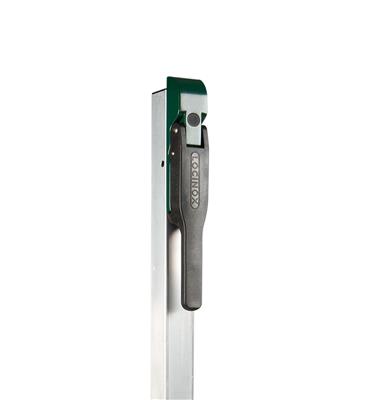

Internal aluminum drop bolt. An aesthetical solution for double leaf gates, the drop bolt disappears from view. The drop bolt is conveniently operated at waist height and if the handle is installed between the gate leaves, it becomes self-locking. It fits inside 1-1/2" to 2-1/2" square tubing.

Variants

6005	6009	9005	SILV
Internal drop bolt in RAL 6005	Internal drop bolt in RAL 6009	Internal drop bolt in RAL 9005	Internal drop bolt in Silver

Continue shopping

Specifications
Drawings
Downloads

Specifications

Specifications	Height adjustability of the drop bolt: 4" Internal drop bolt in aluminum Throw: 4-3/4" Steel handle with black plastic coating (polyamide) provides the optimal combination between robustness, ergonomy and protection against corrosion Internal push spring guarantees a perfect closure (even if the drop bolt is blocked by dirt inside the ground stop) and prevents overpressure Fast & easy mounting: 2 screws User-friendly manipulation of the drop bolt at a convenient height For square gate profiles: 1-1/2", 2", or 2-1/2" and for rectangular gate profiles: 2-3/8" x 1-1/2" For profiles of 1-1/2", 2" and 2-1/2": max. wall thickness of 5/64" For profiles of 2-3/8" x 1-1/2": wall thickness up to 1/8"
Available in following RAL-colors
