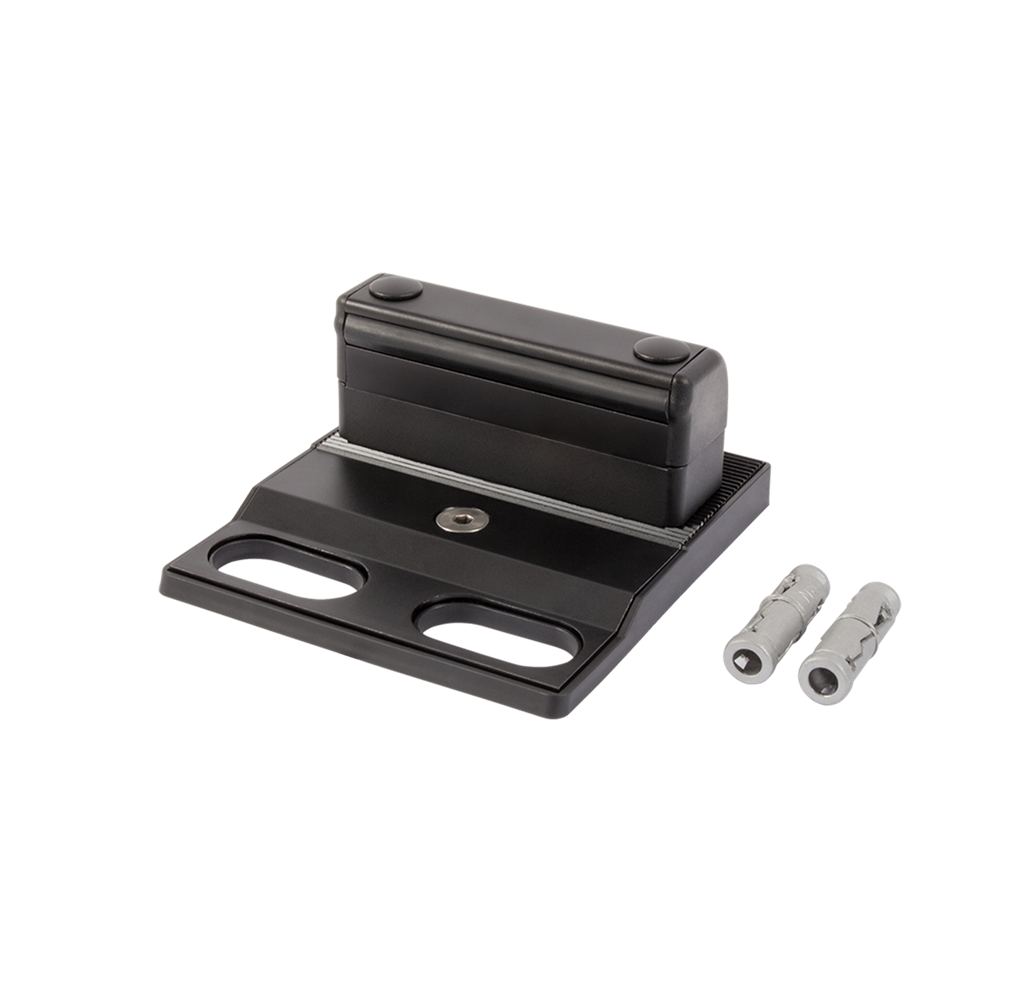

Bolt-on off-centered ground stop - SABO

Item No. P00006490 - SABO

Strong surface mounted ground stop for double wing gates. Drop bolts with a maximum axle of Ø13/16" are the perfect fit.

Specifications

Specifications	Surface mounted design, suitable for surface mounted drop bolts Maximum drop bolt axle diameter: Ø13/16" Adjustable in height: distance between finished ground level & bottom of the gate: 13/16" to 1-3/4" Adjustable in depth, different gate profiles possible: VSA - VSF - Keydrop: 1-9/16" to 2-3/8"; Electradrop: 1-9/16" to 2" Anchor pins included Material: black anodized aluminum top plate
Available in following RAL-colors

Drawings

Downloads
