Compact 180° hydraulic gate closer and hinge for gates up to 165 lbs

Compact 180° hydraulic gate closer and hinge for gates up to 165 lbs - TIGER

Item No. P00009368 - TIGER-USA

180° self-closing hydraulic hinge with precise adjustments on speed and final snap. The aluminum powder coated housing and unique high-tech components allow the Tiger to function perfectly in any weather situation. We highly recommend the Tigerdrill for an even more efficient installation. The Puma hinge is included.

Product specs

Variants

9005	SILV

Continue shopping

Specifications

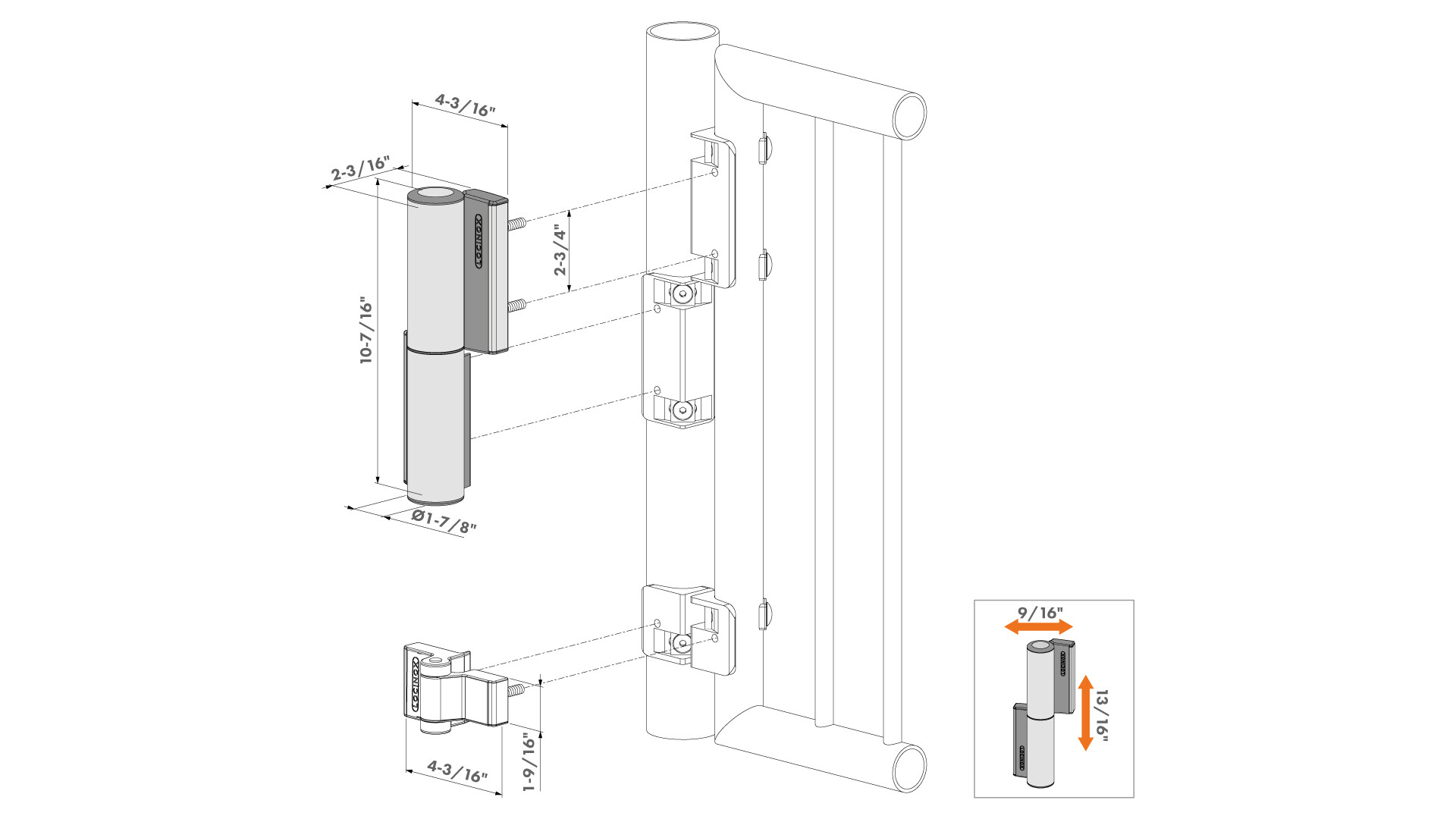

Drawings
Installation movies
Downloads

Specifications

Specifications	180° self-closing hinge with patented hydraulic damping Compact design with high quality components Weatherproof aluminum housing designed for exterior use Patented hydraulic damping - consistent closing speed, regardless of temperature For left and right turning gates Fast and easy fixation with Quick-Fix bolts Installation gap 7/16" up to 1" (5/8" adjustability) 3/4" vertical adjustability ADA compliant (< 5 lbs; max 16 Nm) from gate widths of 3ft. or more
Available in following RAL-colors
Features
